Our Products: Geotech Tooling

Hollow Stem Augers

Flightless Extension Inside Diameter Pin Connection Box Connection Shoulder-to-Shoulder Length Assembly
Part Number
2-1/4-inches
(57mm)
2-1/4”ID x 2-Key x Standard Duty 2-1/4”ID x 2-Key x Standard Duty 60-inches
(1.5 m)
HSE0225-60-2S
3-1/4-inches
(82.6mm)
3-1/4”ID x 2-Key x Heavy Duty 3-1/4”ID x 2-Key x Heavy Duty 24-inches
(610 mm)
HSE0325-24-2H
3-1/4-inches
(82.6mm)
3-1/4”ID x 2-Key x Heavy Duty 3-1/4”ID x 2-Key x Heavy Duty 30-inches
(762 mm)
HSE0325-30-2H
3-1/4-inches
(82.6mm)
3-1/4”ID x 2-Key x Heavy Duty 3-1/4”ID x 2-Key x Heavy Duty 42-inches
(1.07 m)
HSE0325-42-2H
3-1/4-inches
(82.6mm)
3-1/4”ID x 2-Key x Heavy Duty 3-1/4”ID x 2-Key x Heavy Duty 60-inches
(1.5 m)
HSE0325-60-2H
4-1/4-inches
(108 mm)
4-1/4”ID x 2-Key x Heavy Duty 4-1/4”ID x 2-Key x Heavy Duty 12-inches
(305 mm)
HSE0425-12-2H
4-1/4-inches
(108 mm)
4-1/4”ID x 2-Key x Heavy Duty 4-1/4”ID x 2-Key x Heavy Duty 20-inches
(508 mm)
HSE0425-20-2H
4-1/4-inches
(108 mm)
4-1/4”ID x 2-Key x Heavy Duty 4-1/4”ID x 2-Key x Heavy Duty 24-inches
(610 mm)
HSE0425-24-2H
3-1/4-inches
(82.6 mm)
4-1/4”ID x 2-Key x Heavy Duty 3-1/4”ID x 2-Key x Heavy Duty 28-inches
(711.2 mm)
HSE0425-28-0325-2H
4-1/4-inches
(108 mm)
4-1/4”ID x 2-Key x Heavy Duty 4-1/4”ID x 2-Key x Heavy Duty 30-inches
(762 mm)
HSE0425-30-2H
4-1/4-inches
(108 mm)
4-1/4”ID x 2-Key x Heavy Duty 4-1/4”ID x 2-Key x Heavy Duty 36-inches
(0.91 m)
HSE0425-36-2H
4-1/4-inches
(108 mm)
4-1/4”ID x 2-Key x Heavy Duty 4-1/4”ID x 2-Key x Heavy Duty 44-inches
(1.12 m)
HSE0425-44-2H
4-1/4-inches
(108 mm)
4-1/4”ID x 2-Key x Heavy Duty 4-1/4”ID x 2-Key x Heavy Duty 48-inches
(1.22 m)
HSE0425-48-2H
6-1/4-inches
(159 mm)
6-1/4”ID x 2-Key x Standard Duty 6-1/4”ID x 2-Key x Standard Duty 24-inches
(610 mm)
HSE0625-24-2S
6-1/4-inches
(159 mm)
6-1/4”ID x 2-Key x Extra Heavy Duty 6-1/4”ID x 2-Key x Heavy Duty 36-inches
(0.91 m)
HSE0625-36-0625-2EH
6-5/8-inches
(168.3 mm)
6-5/8”ID x 3-Key x Standard Duty 6-5/8”ID x 3-Key x Standard Duty 36-inches
(0.91 mm)
HSE06625-36-3S
Assembly Inside Diameter Actual Flight Outside Diameter Hole Size Assembly Length Assembly Weight Assembly Part Number
3-1/4-inch (83mm) 6-5/8-inch (168mm) 7-1/4-inch (184mm) 5-Foot (1.5m) 69-Pounds (31.3 kg) HS0325-5-2H
4-1/4-inch (108mm) 8-1/8-inch (206.4mm) 9-inch (229mm) 2-Foot (610mm) 36-Pounds (16.3 kg) HS0425-2-2H
4-1/4-inch (108mm) 8-1/8-inch (206.4mm) 9-inch (229mm) 2-1/2-Foot (.76m) 45-Pounds (20.4 kg) HS0425-25-2H
4-1/4-inch (108mm) 8-1/8-inch (206.4mm) 9-inch (229mm) 5-Foot (1.5m) 90-Pounds (40.8 kg) HS0425-5-2H
6-1/4-inch (159mm) 10-1/4-inch (260.4mm) 11-inch (280mm) 5-Foot (1.5m) 105-Pounds (47.6 kg) HS0625-5-2H
8-1/4-inch (210mm) 12-1/4-inch (311.2mm) 13-inch (330mm) 5-Foot (1.5m) 144-Pounds (65.3 kg) HS0825-5-2H
10-1/4-inch (260.4mm) 14-inch (356mm) 14-3/4-inch (375mm) 5-Foot (1.5m) 256-Pounds (116. kg) HS10225-5-2H
12-1/4-inch (311.2mm) 17-1/4-inch (438mm) 18-inch (457mm) 5-Foot (1.5m) 270-Pounds (122.5 kg) HS1225-5-2H
Component Part Fits Hollow Stem Augers Each Auger Assembly Includes Assembly Part Number
2-Key Heavy Duty Lockbolt 3-1/4-inch (83mm) thru
8-1/4-inch (210mm)
2-Lockbolts 16009
2-Key Heavy Duty Bushing 3-1/4-inch (83mm) thru
8-1/4-inch (210mm)
2-Bushings 16013
2-Key Heavy Duty Drive Key 3-1/4-inch (83mm) thru
8-1/4-inch (210mm)
2-Drive Keys 16017
2-Key Extra Heavy Duty Lockbolt 10-1/4-inch (260.4mm) thru 12-1/4-inch (210mm) 2-Lockbolts 16039
2-Key Extra Heavy Duty Bushing 10-1/4-inch (260.4mm) thru 12-1/4-inch (210mm) 2-Bushings 16040
2-Key Extra Heavy Duty Drive Key 10-1/4-inch (260.4mm) thru 12-1/4-inch (210mm) 2-Drive Keys 16041
Extension Inside Diameter Pin Connection Box Connection Assembly Length Assembly Weight Assembly Part Number
3-1/4-inch (83mm) 3-1/4-inch (83mm) 3-1/4-inch (83mm) 42-inch (1.06m) 50-Pounds (22.7 kg) HSE0325-42-2H
3-1/4-inch (83mm) 4-1/4-inch (108mm) 3-1/4-inch (83mm) 28-inch (711mm) 34-Pounds (15.4 kg) HSE0425-28-0325-2H
4-1/4-inch (108mm) 4-1/4-inch (108mm) 4-1/4-inch (108mm) 12-inch (305mm) 15-Pounds (6.8 kg) HSE0425-12-2H
4-1/4-inch (108mm) 4-1/4-inch (108mm) 4-1/4-inch (108mm) 24-inch (610mm) 32-Pounds (14.5 kg) HSE0425-24-2H
4-1/4-inch (108mm) 4-1/4-inch (108mm) 4-1/4-inch (108mm) 30-inch (762mm) 39-Pounds (17.7 kg) HSE0425-30-2H
4-1/4-inch (108mm) 4-1/4-inch (108mm) 4-1/4-inch (108mm) 36-inch (914.4mm) 47-Pounds (21.3 kg) HSE0425-36-2H
4-1/4-inch (108mm) 4-1/4-inch (108mm) 4-1/4-inch (108mm) 48-inch (1.2m) 63-Pounds (28.6 kg) HSE0425-48-2H
6-1/4-inch (159mm) 6-1/4-inch (159mm) 6-1/4-inch
(159mm) Extra Heavy Duty
36-inch (.9m) 76-Pounds (34.5 kg) HSE0625-36-0625-2EH
Drive Cap Box Hex Shank Fits Pin Connection Number of Lockbolts Assembly Weight Assembly Part Number
3-1/4-inch (83mm) 1-5/8-inch (41mm) 2-Key Heavy Duty 2-Lockbolts 17-Pounds (7.7 kg) DC0325-2H-1625
3-1/4-inch (83mm) 2-inch (51mm) 2-Key Heavy Duty 2-Lockbolts 22-Pounds (10 kg) DC0325-2H-2000
4-1/4-inch (108mm) 1-5/8-inch (41mm) 2-Key Heavy Duty 2-Lockbolts 24-Pounds (10.9 kg) DC0425-2H-1625
4-1/4-inch (108mm) 2-inch (51mm) 2-Key Heavy Duty 2-Lockbolts 28-Pounds (12.7 kg) DC0425-2H-2000
6-1/4-inch (159mm) 1-5/8-inch (41mm) 2-Key Heavy Duty 2-Lockbolts 46-Pounds (20.9 kg) DC0625-2H-1625
6-1/4-inch (159mm) 2-inch (51mm) 2-Key Heavy Duty 2-Lockbolts 49-Pounds (49 kg) DC0625-2H-2000
8-1/4-inch (210mm) 1-5/8-inch (41mm) 2-Key Heavy Duty 2-Lockbolts 55-Pounds (25 kg) DC0825-2H-1625
8-1/4-inch (210mm) 2-inch (51mm) 2-Key Heavy Duty 2-Lockbolts 57-Pounds (25.9 kg) DC0825-2H-2000
10-1/4-inch (260.4mm) 2-inch (51mm) 2-Key Heavy Duty 2-Lockbolts 70-Pounds (32 kg) DC1025-2H-2000
12-1/4-inch (311.2mm) 2-inch (51mm) 2-Key Heavy Duty 2-Lockbolts 75-Pounds (34 kg) DC1225-2H-2000
Plug Assembly Fits Inside Upper Connection Lower Connection Plug Bolt Required Assembly Weight Assembly Part Number
3-1/4-inch (83mm) AW 1-1/8-inch (29mm) Yes 12-Pounds (5.4 kg) 22302-AW
3-1/4-inch (83mm) AWJ 1-1/8-inch (29mm) Yes 12-Pounds (5.4 kg) 22302-AWJ
4-1/4-inch (108mm) AW 1-1/8-inch (29mm) Yes 19-Pounds (8.6 kg) 22303-AW
4-1/4-inch (108mm) AWJ 1-1/8-inch (29mm) Yes 19-Pounds (8.6 kg) 22303-AWJ
6-1/4-inch (159mm) NW 1-5/8-inch (41mm) Yes 50-Pounds (22.7 kg) 22304-NW
6-1/4-inch (159mm) NWJ 1-5/8-inch (41mm) Yes 50-Pounds (22.7 kg) 22304-NWJ
8-1/4-inch (210mm) NW 1-5/8-inch (41mm) Yes 34-Pounds (15.4 kg) 22306-NW
8-1/4-inch (210mm) NWJ 1-5/8-inch (41mm) Yes 34-Pounds (15.4 kg) 22306-NWJ
Rod-to-Cap Adapter Fits Inside Assembly Flats Drive Inside Pin Down Assembly
Part Number
3-1/4-inch (83mm) 2-Key Heavy Duty Box AW 22202-AW
3-1/4-inch (83mm) 2-Key Heavy Duty Box AWJ 22202-AWJ
4-1/4-inch (108mm) 2-Key Heavy Duty Box AW 22203-AW
4-1/4-inch (108mm) 2-Key Heavy Duty Box AWJ 22203-AWJ
6-1/4-inch (159mm) 2-Key Heavy Duty Box NW 22204-NW
6-1/4-inch (159mm) 2-Key Heavy Duty Box NWJ 22204-NWJ
8-1/4-inch (210mm) 2-Key Heavy Duty Box NW 22206-NW
8-1/4-inch (210mm) 2-Key Heavy Duty Box NWJ 22206-NWJ
Pin Inside Diameter Shipping Weight Assembly
Part Number
3-1/4-inch (83mm) 6-Pounds (2.7 kg) 17016
4-1/4-inch (108mm) 9-Pounds (4.1 kg) 17006
6-1/4-inch (159mm) 15-Pounds (6.8 kg) 17007
8-1/4-inch (210mm) 18-Pounds (8.2 kg) 17009
10-1/4-inch (260.4mm) 22-Pounds (10 kg) 17011
12-1/4-inch (311.2mm) 25-Pounds (11.3 kg) 17013
Box Assembly Shipping Weight Assembly Part Number
3-1/4-inch (83mm) 6-Pounds (2.7 kg) 18016
4-1/4-inch (108mm) 9-Pounds (4.1 kg) 18006
6-1/4-inch (159mm) 15-Pounds (6.8 kg) 18007
8-1/4-inch (210mm) 25-Pounds (11.3 kg) 18009
10-1/4-inch (260.4mm) 28-Pounds (12.7 kg) 18011
12-1/4-inch (311.2mm) 31-Pounds (14.1 kg) 18013
Assembly Inside Diameter Actual Flight Outside Diameter Hole Size Assembly Length Assembly Weight Assembly
Part Number
2-1/4-inch (57mm) 5-5/8-inch (143mm) 6-1/4-inch (159mm) 5-Foot (1.5m) 55-Pounds (25 kg) HS025-5-2S
3-1/4-inch (83mm) 6-5/8-inch (168mm) 7-1/4-inch (184mm) 2-Foot (610mm) 28-Pounds (23.7 kg) HS0325-2-2S
3-1/4-inch (83mm) 6-5/8-inch (168mm) 7-1/4-inch (184mm) 5-Foot (1.5m) 70-Pounds (31.8 kg) HS0325-5-2S
4-1/4-inch (108mm) 7-5/8-inch (193.7mm) 8-1/4-inch (210mm) 2-Foot (610m) 36-Pounds (16.3 kg) HS0425-2-2S
4-1/4-inch (108mm) 7-5/8-inch (193.7mm) 8-1/4-inch (210mm) 2-1/2-Foot (.75m) 45-Pounds (20.4 kg) HS0425-30-2S
4-1/4-inch (108mm) 7-5/8-inch (193.7mm) 8-1/4-inch (210mm) 5-Foot (1.5m) 90-Pounds (40.8 kg) HS0325-5-2S
6-1/4-inch (159mm) 9-5/8-inch (244.5mm) 10-1/2-inch (267mm) 5-Foot (1.5m) 105-Pounds (47.6 kg) HS0625-5-2S
Component Part Fits Hollow Stem Augers Each Auger Assembly Includes Assembly
Part Number
2-Key Standard Duty Lockbolt 2-1/4-inch (57mm) &
3-1/4-inch (83mm)
1-Lockbolt 16010
2-Key Standard Duty Lockbolt 4-1/4-inch (108mm) &
6-1/4-inch (159mm)
2-Lockbolts 16010
2-Key Standard Duty Bushing 2-1/4-inch (57mm) &
3-1/4-inch (83mm)
1-Bushing 16014
2-Key Standard Duty Bushing 4-1/4-inch (108mm) &
6-1/4-inch (159mm)
2-Bushings 16014
2-Key Standard Duty Drive Key 2-1/4-inch (57mm) thru 6-1/4-inch (159mm) 2-Drive Keys 16018
Extension Inside Diameter Pin Connection Box Connection Assembly Length Assembly Weight Assembly
Part Number
2-1/4-inch (57mm) 2-1/4-inch (57mm) 2-1/4-inch (83mm) 60-inch (1.06m) 40-Pounds (20.4 kg) HSE0225-60-2S
Drive Cap Box Hex Shank Fits Pin Connection Number of Lockbolts Assembly Weight Assembly
Part Number
2-1/4-inch (57mm) 1-1/8-inch (29mm) 2-Key Standard Duty 1-Lockbolt 15-Pounds (6.8 kg) DC0325-2S-1125
2-1/4-inch (57mm) 1-5/8-inch (41mm) 2-Key Standard Duty 1-Lockbolt 15-Pounds (6.8 kg) DC0225-2S-1625
3-1/4-inch (83mm) 1-1/8-inch (29mm) 2-Key Standard Duty 1-Lockbolt 17-Pounds (7.7 kg) DC0325-2S-1125
3-1/4-inch (83mm) 1-5/8-inch (41mm) 2-Key Heavy Duty 1-Lockbolt 17-Pounds (7.7 kg) DC0325-2S-1625
3-1/4-inch (83mm) 2-inch (51mm) 2-Key Standard Duty 1-Lockbolt 22-Pounds (10 kg) DC0325-2S-2000
4-1/4-inch (108mm) 1-1/8-inch (29mm) 2-Key Standard Duty 2-Lockbolts 24-Pounds (10.9 kg) DC0425-2S-1125
4-1/4-inch (108mm) 1-5/8-inch (41mm) 2-Key Standard Duty 2-Lockbolts 24-Pounds (10.9 kg) DC0425-2S-1625
4-1/4-inch (108mm) 2-inch (51mm) 2-Key Standard Duty 2-Lockbolts 28-Pounds (12.7 kg) DC0425-2S-2000
6-1/4-inch (159mm) 1-5/8-inch (41mm) 2-Key Standard Duty 2-Lockbolts 46-Pounds (20.9 kg) DC0625-2S-1625
6-1/4-inch (159mm) 2-inch (51mm) 2-Key Standard Duty 2-Lockbolts 49-Pounds (49 kg) DC0625-2S-2000
Plug Assembly Fits Inside Upper Connection Lower Connection Plug Bolt Required Assembly Weight Assembly
Part Number
2-1/4-inch (57mm) AW 13/16-inch (21mm) Yes 4-Pounds (1.8 kg) 22301-AW
2-1/4-inch (57mm) AW 13/16-inch (21mm) Yes 4-Pounds (1.8 kg) 22301-AWJ
3-1/4-inch (83mm) AW 1-1/8-inch (29mm) Yes 12-Pounds (5.4 kg) 22302-AW
3-1/4-inch (83mm) AWJ 1-1/8-inch (29mm) Yes 12-Pounds (5.4 kg) 22302-AWJ
4-1/4-inch (108mm) AW 1-1/8-inch (29mm) Yes 19-Pounds (8.6 kg) 22303-AW
4-1/4-inch (108mm) AWJ 1-1/8-inch (29mm) Yes 19-Pounds (8.6 kg) 22303-AWJ
6-1/4-inch (159mm) NW 1-5/8-inch (41mm) Yes 50-Pounds (22.7 kg) 22304-NW
6-1/4-inch (159mm) NWJ 1-5/8-inch (41mm) Yes 50-Pounds (22.7 kg) 22304-NWJ
Rod-to-Cap Adapter Fits Inside Assembly Flats Drive Inside Pin Down Assembly
Part Number
2-1/4-inch (57mm) 2-Key Standard Duty AW 22201-AW
2-1/4-inch (57mm) 2-Key Standard Duty AWJ 22201-AWJ
3-1/4-inch (83mm) 2-Key Standard Duty Box AW 22202-AW
3-1/4-inch (83mm) 2-Key Standard Duty Box AWJ 22202-AWJ
4-1/4-inch (108mm) 2-Key Standard Duty Box AW 22203-AW
4-1/4-inch (108mm) 2-Key Standard Duty Box AWJ 22203-AWJ
6-1/4-inch (159mm) 2-Key Standard Duty Box NW 22204-NW
6-1/4-inch (159mm) 2-Key Standard Duty Box NWJ 22204-NWJ
Pin Inside Diameter Shipping Weight Assembly
Part Number
2-1/4-inch (57mm) 5-Pounds (2.3 kg) 17001
3-1/4-inch (83mm) 6-Pounds (2.7 kg) 17002
4-1/4-inch (108mm) 9-Pounds (4.1 kg) 17004
6-1/4-inch (159mm) 15-Pounds (6.8 kg) 17015
Box Assembly Shipping Weight Assembly
Part Number
2-1/4-inch (57mm) 5-Pounds (2.3 kg) 18001
3-1/4-inch (83mm) 6-Pounds (2.7 kg) 18002
4-1/4-inch (108mm) 9-Pounds (4.1 kg) 18004
6-1/4-inch (159mm) 15-Pounds (6.8 kg) 18015
Assembly Inside Diameter Actual Flight Outside Diameter Hole Size Assembly Length Assembly Weight Assembly
Part Number
3-1/4-inch (83mm) 6-1/2-inch (165mm) 7-1/4-inch (184mm) 2-Foot (610mm) 28-Pounds (23.7 kg) HS0325-2-3S
3-1/4-inch (83mm) 6-1/2-inch (165mm) 7-1/4-inch (184mm) 5-Foot (1.5m) 70-Pounds (31.8 kg) HS0325-5-3S
4-1/4-inch (108mm) 7-5/8-inch (193.7mm) 9-inch (229mm) 1-Meter 36-Pounds (16.3 kg) HS0425-1M-3S
4-1/4-inch (108mm) 7-5/8-inch (193.7mm) 9-inch (229mm) 5-Foot (1.5m) 90-Pounds (40.8 kg) HS0425-5-3S
6-5/8-inch (168mm) 10-inch (254mm) 11-inch (279mm) 2-Foot (610mm) 42-Pounds (19.1 kg) HS06625-2-3S
6-5/8-inch (168mm) 10-inch (254mm) 11-inch (279mm) 30-inch (762mm) 53-Pounds (24 kg) HS06625-30-3S
6-5/8-inch (168mm) 10-inch (254mm) 11-inch (279mm) 3-Foot (.9m) 63-Pounds (28.6 kg) HS06625-3-3S
6-5/8-inch (168mm) 10-inch (254mm) 11-inch (279mm) 5-Foot (1.5m) 105-Pounds (47.6 kg) HS06625-5-3S
8-1/4-inch (210mm) 12-inch (305mm) 13-3/4-inch (349mm) 1-Foot (305mm) 29-Pounds (13.2 kg) HS0825-1-3S
8-1/4-inch (210mm) 12-inch (305mm) 13-3/4-inch (349mm) 2-Foot (610mm) 58-Pounds (26.3 kg) HS0825-2-3S
8-1/4-inch (210mm) 12-inch (305mm) 13-3/4-inch (349mm) 3-Foot (.9m) 87-Pounds (39.5 kg) HS0825-3-3S
8-1/4-inch (210mm) 12-inch (305mm) 13-3/4-inch (349mm) 5-Foot (1.5m) 144-Pounds (65.3 kg) HS0825-5-3S
Component Part Fits Hollow Stem Augers Each Auger Assembly Includes Assembly
Part Number
3-Key Standard Duty Lockbolt 3-1/4-inch (83mm) 1-Lockbolt 16011
3-Key Standard Duty Lockbolt 4-1/4-inch (108mm) thru 8-1/4-inch (210mm) 2-Lockbolts 16011
3-Key Standard Duty Bushing 3-1/4-inch (83mm) 1-Bushing 16015-HD
3-Key Standard Duty Bushing 4-1/4-inch (108mm) thru 8-1/4-inch (210mm) 2-Bushings 16015-HD
3-Key Standard Duty Drive Key 3-1/4-inch (83mm) thru 8-1/4-inch (210mm) 3-Drive Keys 16018
Drive Cap Box Hex Shank Fits Pin Connection Number of Lockbolts Assembly Weight Assembly
Part Number
3-1/4-inch (83mm) 1-1/8-inch (29mm) 3-Key Standard Duty 1-Lockbolt 17-Pounds (7.7 kg) DC0325-3S-1125
3-1/4-inch (83mm) 1-5/8-inch (41mm) 3-Key Standard Duty 1-Lockbolt 17-Pounds (7.7 kg) DC0325-3S-1625
3-1/4-inch (83mm) 2-inch (51mm) 3-Key Standard Duty 1-Lockbolt 22-Pounds (10 kg) DC0325-3S-2000
4-1/4-inch (108mm) 1-1/8-inch (29mm) 3-Key Standard Duty 2-Lockbolts 24-Pounds (10.9 kg) DC0425-3S-1125
4-1/4-inch (108mm) 1-5/8-inch (41mm) 3-Key Standard Duty 2-Lockbolts 24-Pounds (10.9 kg) DC0425-3S-1625
4-1/4-inch (108mm) 2-inch (51mm) 3-Key Standard Duty 2-Lockbolts 28-Pounds (12.7 kg) DC0425-3S-2000
6-5/8-inch (168mm) 1-5/8-inch (41mm) 3-Key Standard Duty 2-Lockbolts 46-Pounds (20.9 kg) DC6625-3S-1625
6-5/8-inch (168mm) 2-inch (51mm) 3-Key Standard Duty 2-Lockbolts 49-Pounds (22.2 kg) DC6625-3S-2000
6-5/8-inch (168mm) 2-3/8-inch API Regular Pin 3-Key Standard Duty 2-Lockbolts 49-Pounds (22.2 kg) DC6625-3S-2375
8-1/4-inch (210mm) 1-5/8-inch (41mm) 3-Key Standard Duty 2-Lockbolts 55-Pounds (25 kg) DC0825-3S-1625
8-1/4-inch (210mm) 2-inch (51mm) 3-Key Standard Duty 2-Lockbolts 57-Pounds (25.9 kg) DC0825-3S-2000
Plug Assembly Fits Inside Upper Connection Lower Connection Plug Bolt Required Assembly Weight Assembly
Part Number
3-1/4-inch (83mm) AW 1-1/8-inch (29mm) Yes 12-Pounds (5.4 kg) 22302-AW
3-1/4-inch (83mm) AWJ 1-1/8-inch (29mm) Yes 12-Pounds (5.4 kg) 22302-AWJ
4-1/4-inch (108mm) AW 1-1/8-inch (29mm) Yes 19-Pounds (5.4 kg) 22303-AW
4-1/4-inch (108mm) AWJ 1-1/8-inch (29mm) Yes 19-Pounds (5.4 kg) 22303-AWJ
6-5/8-inch (168mm) NW 1-5/8-inch (41mm) Yes 50-Pounds (22.7 kg) 22304-NW
6-5/8-inch (168mm) NWJ 1-5/8-inch (41mm) Yes 50-Pounds (22.7 kg) 22304-NWJ
8-1/4-inch (210mm) NW 1-5/8-inch (41mm) Yes 34-Pounds (15.4 kg) 22306-NW
8-1/4-inch (210mm) NW 1-5/8-inch (41mm) Yes 34-Pounds (15.4 kg) 22306-NWJ
Rod-to-Cap Adapter Fits Inside Assembly Flats Drive Inside Pin Down Assembly
Part Number
3-1/4-inch (83mm) 3-Key Standard Duty Box AW 22202-AW
3-1/4-inch (83mm) 3-Key Standard Duty Box AWJ 22202-AWJ
4-1/4-inch (108mm) 3-Key Standard Duty Box AW 22203-AW
4-1/4-inch (108mm) 3-Key Standard Duty Box AWJ 22203-AWJ
6-5/8-inch (168mm) 3-Key Standard Duty Box NW 22205-NW
6-5/8-inch (168mm) 3-Key Standard Duty Box NWJ 22205-NWJ
8-1/4-inch (210mm) 3-Key Standard Duty Box NW 22206-NW
8-1/4-inch (210mm) 3-Key Standard Duty Box NWJ 22206-NWJ
Pin Inside Diameter Shipping Weight Assembly
Part Number
3-1/4-inch (83mm) 6-Pounds (2.7 kg) 17003
4-1/4-inch (108mm) 9-Pounds (4.1 kg) 17005
6-5/8-inch (168mm) 15-Pounds (6.8 kg) 17008
8-1/4-inch (210mm) 18-Pounds (8.2 kg) 17010
Box Assembly Shipping Weight Assembly
Part Number
3-1/4-inch (83mm) 6-Pounds (2.7 kg) 18003
4-1/4-inch (108mm) 9-Pounds (4.1 kg) 18005
6-5/8-inch (168mm) 15-Pounds (6.8 kg) 18008
8-1/4-inch (210mm) 18-Pounds (8.2 kg) 18010
Assembly Inside Diameter Actual Flight Outside Diameter Hole Size Assembly Length Assembly Weight Assembly
Part Number
10-1/4-inch (260mm) 14-1/4-inch (362mm) 15-inch (381mm) 5-Foot (1.5m) 256-Pounds (116.1 kg) HS1025-5-3H
12-1/4-inch (311mm) 17-inch (432mm) 18-inch (457mm) 5-Foot (1.5m) 275-Pounds (124.7 kg) HS1225-5-3H
Component Part Fits Hollow Stem Augers Each Auger Assembly Includes Assembly
Part Number
3-Key Heavy Duty Lockbolt 10-1/4-inch (260mm) & 12-1/4-inch (311mm) 2-Lockbolts 16042
3-Key Heavy Duty Bushing 10-1/4-inch (260mm) & 12-1/4-inch (311mm) 2-Bushings 16016
3-Key Heavy Duty Drive Key 10-1/4-inch (260mm) & 12-1/4-inch (311mm) 3-Drive Keys 16020
Drive Cap Box Hex Shank Fits Pin Connection Number of Lockbolts Assembly Weight Assembly
Part Number
10-1/4-inch (260mm) 2-inch (51mm) 3-Key Heavy Duty 2-Lockbolts 70-Pounds (31.8 kg) DC1025-3H-2000
12-1/4-inch (311mm) 2-inch (51mm) 3-Key Heavy Duty 2-Lockbolts 75-Pounds (34 kg) DC1225-3H-2000
Pin Inside Diameter Shipping Weight Assembly
Part Number
10-1/4-inch (260mm) 30-Pounds (13.6 kg) 17012
12-1/4-inch (311mm) 35-Pounds (15.9 kg) 17014
Box Assembly Shipping Weight Assembly
Part Number
10-1/4-inch (260mm) 40-Pounds (18.1 kg) 18012
12-1/4-inch (311mm) 45-Pounds (20.4 kg) 18014
Assembly Inside Diameter Cutting Face Components Pin Connection Heavy Duty or Standard Duty Assembly
Part Number
2-1/4-inch (57mm) 4-Bullet Bits 2-Key Standard Duty CH0225-2S-B
3-1/4-inch (83mm) 2-Cutter Blades & 2-Bullet Bits 2-Key Standard Duty CH0325-2S-BB
3-1/4-inch (83mm) 2-Cutter Blades & 2-Bullet Bits 2-Key Heavy Duty CH0325-2H-BB
3-1/4-inch (83mm) 2-Cutter Blades & 2-Bullet Bits 3-Key Standard Duty CH0325-3S-BB
3-1/4-inch (83mm) 4-Bullet Bits 2-Key Standard Duty CH0325-2S-BC20
3-1/4-inch (83mm) 4-Bullet Bits 2-Key Heavy Duty CH0325-2H-BC20
3-1/4-inch (83mm) 4-Bullet Bits 3-Key Standard Duty CH0325-3S-BC20
3-1/4-inch (83mm) 2-Spade Bits & 2-Bullet Bits 2-Key Standard Duty CH0325-2S-SB
3-1/4-inch (83mm) 2-Spade Bits & 2-Bullet Bits 2-Key Heavy Duty CH0325-2H-SB
3-1/4-inch (83mm) 2-Spade Bits & 2-Bullet Bits 3-Key Standard Duty CH0325-3S-SB
Assembly Inside Diameter Cutting Face Components Pin Connection Heavy Duty or Standard Duty Assembly
Part Number
3-3/4-inch (95mm) 2-Cutter Blades &
2-Bullet Bits
2-Key Heavy Duty CH0375-2H-BB
4-1/4-inch (108mm) 2-Cutter Blades &
2-Bullet Bits
2-Key Standard Duty CH0425-2S-BB
4-1/4-inch (108mm) 2-Cutter Blades &
2-Bullet Bits
2-Key Heavy Duty CH0425-2H-BB
4-1/4-inch (108mm) 2-Cutter Blades &
2-Bullet Bits
3-Key Standard Duty CH0425-3S-BB
4-1/4-inch (108mm) 4-Bullet Bits 2-Key Standard Duty CH0425-2S-BC20
4-1/4-inch (108mm) 4-Bullet Bits 2-Key Heavy Duty CH0425-2H-BC20
4-1/4-inch (108mm) 4-Bullet Bits 3-Key Standard Duty CH0425-3S-BC20
4-1/4-inch (108mm) 2-Spade Bits & 2-Bullet Bits 2-Key Standard Duty CH0425-2S-SB
4-1/4-inch (108mm) 2-Spade Bits & 2-Bullet Bits 2-Key Heavy Duty CH0425-2H-BC20
4-1/4-inch (108mm) 2-Spade Bits & 2-Bullet Bits 3-Key Standard Duty CH0425-3S-SB
Assembly Inside Diameter Cutting Face Components Pin Connection Heavy Duty or Standard Duty Assembly
Part Number
6-1/4-inch (159mm) 3-Cutter Blades &
3-Bullet Bits
2-Key Standard Duty CH0625-2S-BB
6-1/4-inch (159mm) 3-Cutter Blades &
3-Bullet Bits
2-Key Heavy Duty CH0625-2H-BB
6-1/4-inch (159mm) 6-Bullet Bits 2-Key Standard Duty CH0625-2S-BC20
6-1/4-inch (159mm) 6-Bullet Bits 2-Key Heavy Duty CH0625-2H-BC20
6-1/4-inch (159mm) 3-Spade Bits & 3-Bullet Bits 2-Key Standard Duty CH0625-2S-SB
6-1/4-inch (159mm) 3-Spade Bits & 3-Bullet Bits 2-Key Heavy Duty CH0625-2H-SB
6-5/8-inch (168mm) 3-Cutter Blades &
3-Bullet Bits
3-Key Standard Duty CH6625-3S-BB
6-5/8-inch (168mm) 6-Bullet Bits 3-Key Standard Duty CH6625-3S-BC20
6-5/8-inch (168mm) 3-Spade Bits & 3-Bullet Bits 3-Key Standard Duty CH6625-3S-SB
8-1/4-inch (210mm) 3-Cutter Blades &
3-Bullet Bits
2-Key Standard Duty CH0825-2S-BB
Assembly Inside Diameter Cutting Face Components Pin Connection Heavy Duty or Standard Duty Assembly
Part Number
8-1/4-inch (210mm) 3-Cutter Blades &
3-Bullet Bits
2-Key Heavy Duty CH0825-2H-BB
8-1/4-inch (210mm) 3-Cutter Blades &
3-Bullet Bits
3-Key Standard Duty CH0825-3S-BB
8-1/4-inch (210mm) 6-Bullet Bits 2-Key Standard Duty CH0825-2S-BC20
8-1/4-inch (210mm) 6-Bullet Bits 2-Key Heavy Duty CH0825-2H-BC20
8-1/4-inch (210mm) 6-Bullet Bits 3-Key Standard Duty CH0825-3S-BC20
8-1/4-inch (210mm) 3-Spade Bits & 3-Bullet Bits 2-Key Standard Duty CH0825-2S-SB
8-1/4-inch (210mm) 3-Spade Bits & 3-Bullet Bits 2-Key Heavy Duty CH0825-2H-SB
8-1/4-inch (210mm) 3-Spade Bits & 3-Bullet Bits 3-Key Standard Duty CH0825-3S-SB
10-1/4-inch (260mm) 4-Cutter Blades & 4-Bullet Bits 2-Key Heavy Duty CH1025-2H-BB
10-1/4-inch (260mm) 4-Cutter Blades & 4-Bullet Bits 3-Key Heavy Duty CH1025-3H-BB
Assembly Inside Diameter Cutting Face Components Pin Connection Heavy Duty or Standard Duty Assembly
Part Number
10-1/4-inch (260mm) 8-Bullet Bits 2-Key Heavy Duty CH1025-2H-BC20
10-1/4-inch (260mm) 8-Bullet Bits 3-Key Heavy Duty CH1025-3H-BC20
10-1/4-inch (260mm) 4-Spade Bits & 4-Bullet Bits 2-Key Heavy Duty CH1025-2H-SB
10-1/4-inch (260mm) 4-Spade Bits & 4-Bullet Bits 3-Key Heavy Duty CH1025-3H-SB
12-1/4-inch (311mm) 4-Cutter Blades & 4-Bullet Bits 2-Key Heavy Duty CH1225-2H-BB
12-1/4-inch (311mm) 4-Cutter Blades & 4-Bullet Bits 3-Key Heavy Duty CH1225-3H-BB
12-1/4-inch (311mm) 8-Bullet Bits 2-Key Heavy Duty CH1225-2H-BC20
12-1/4-inch (311mm) 8-Bullet Bits 3-Key Heavy Duty CH1225-3H-BC20
12-1/4-inch (311mm) 4-Spade Bits & 4-Bullet Bits 2-Key Heavy Duty CH1225-2H-SB
12-1/4-inch (311mm) 4-Spade Bits & 4-Bullet Bits 3-Key Heavy Duty CH1225-3H-SB
Component Part Description Mounts to Assembly
Part Number
Flight Segment with Tapped Hole 3-1/4-inch (57mm)
Cutterhead Body
21103-FS
Flight Segment with Tapped Hole 3-3/4-inch (95mm) & 4-1/4-inch (108mm) Cutterhead Body 21105-FS
Flight Segment with Tapped Hole 6-1/4-inch (159mm)
Cutterhead Body
21107-FS
Flight Segment with Tapped Hole 6-5/8-inch (168mm) Cutterhead Body 21108-FS
Cutter Blade with 3-Carbide Chips & Retaining Bolt Flight Segment with Tapped Hole 21011
Cutter Blade with 4-Carbide Chips & Retaining Bolt Flight Segment with Tapped Hole 21011-HD
Retaining Bolt with Hex Head 21011 Series &
21011 Series Cutter Blade
16036
Standard Bit Block Flight Segment with Tapped Hole 21002
Large Bit Block Flight Segment with Tapped Hole 21003
Bullet with Carbide Insert 21002 Series Bit Block 21000
Bullet with Large Shoulder & Carbide Insert 21002 Series Bit Block 21000-L
Bullet with Large Shank & Carbide Insert 21003 Series Bit Block 21004
Spade Bit with Large Shank & Carbide Insert 21003 Series Bit Block 21001
5-T Bit with Long Shank, Retaining Nail & Carbide Insert CME Style Bit Block 21010
5-T Bit with Short Shank, Retaining Nail & Carbide Insert Diedrich Style Bit Block 21010-D
Retaining Nail 21010 Series &
21010-D Series 5-T Bit
21145
Auger Assembly Inside Diameter Pin Connection Heavy Duty or Standard Duty Assembly
Part Number
2-1/4-inch (57mm) 2-Key Standard Duty 31056
3-1/4-inch (83mm) 2-Key Standard Duty 31057
3-1/4-inch (83mm) 3-Key Standard Duty 31058
4-1/4-inch (108mm) 2-Key Standard Duty 31059
4-1/4-inch (108mm) 3-Key Standard Duty 31060
4-1/4-inch (108mm) 2-Key Heavy Duty 31061
6-1/4-inch (159mm) 2-Key Heavy Duty 31062
6-5/8-inch (168mm) 3-Key Standard Duty 31063
8-1/4-inch (210mm) 3-Key Standard Duty 31064
10-1/4-inch (260mm) 3-Key Heavy Duty 31066
10-1/4-inch (260mm) 2-Key Heavy Duty 31065
12-1/4-inch (311mm) 3-Key Heavy Duty 31068
12-1/4-inch (311mm) 2-Key Heavy Duty 31067
Auger Assembly Inside Diameter Pin Connection Heavy Duty or Standard Duty Assembly Weight Assembly
Part Number
2-1/4-inch (57mm) 2-Key Standard Duty 10-Pounds (4.5 kg) 31043
3-1/4-inch (83mm) 2-Key & 3-Key Standard Duty & Heavy Duty 33-Pounds (15 kg) 31044
4-1/4-inch (108mm) 2-Key & 3-Key Standard Duty & Heavy Duty 33-Pounds (15 kg) 31046
6-1/4-inch (159mm) 2-Key Standard Duty & Heavy Duty 30-Pounds (13.6 kg) 31049
6-5/8-inch (168mm) 3-Key Standard Duty 30-Pounds (13.6 kg) 31049
8-1/4-inch (210mm) 2-Key & 3-Key Standard Duty & Heavy Duty 30-Pounds (13.6 kg) 31051
10-1/4-inch (260mm) 2-Key & 3-Key Heavy Duty 50-Pounds (22.7 kg) 31052
12-1/4-inch (311mm) 2-Key & 3-Key Heavy Duty 50-Pounds (22.7 kg) 31054
Auger Assembly Inside Diameter Pin Connection Heavy Duty or Standard Duty Assembly Weight Assembly
Part Number
2-1/4-inch (57mm) 2-Key Standard Duty 35-Pounds (15.9 kg) 31039-IT
3-1/4-inch (83mm) 2-Key Standard Duty 35-Pounds (15.9 kg) 31085
3-1/4-inch (83mm) 3-Key Standard Duty 35-Pounds (15.9 kg) 31070
3-1/4-inch (83mm) 2-Key Heavy Duty 35-Pounds (15.9 kg) 31084
4-1/4-inch (108mm) 2-Key Standard Duty 50-Pounds (22.7 kg) 31086
4-1/4-inch (108mm) 3-Key Standard Duty 50-Pounds (22.7 kg) 31087
4-1/4-inch (108mm) 2-Key Heavy Duty 50-Pounds (22.7 kg) 31072
6-1/4-inch (159mm) 2-Key Standard Duty 87-Pounds (39.5 kg) 31075
6-1/4-inch (159mm) 2-Key Heavy Duty 87-Pounds (39.5 kg) 31088
6-5/8-inch (168mm) 3-Key Standard Duty 87-Pounds (39.5 kg) 31076
8-1/4-inch (210mm) 3-Key Standard Duty 31077
8-1/4-inch (210mm) 2-Key Heavy Duty 31089
10-1/4-inch (260mm) 3-Key Heavy Duty 31078
10-1/4-inch (260mm) 2-Key Heavy Duty 31090
12-1/4-inch (311mm) 3-Key Heavy Duty 31080
12-1/4-inch (311mm) 2-Key Heavy Duty 31091
Auger Assembly Inside Diameter Pin Connection Heavy Duty or Standard Duty Assembly Weight Assembly
Part Number
2-1/4-inch (57mm) 2-Key Standard Duty 26-Pounds (11.8 kg) 31082
3-1/4-inch (83mm) 2-Key Standard Duty 26-Pounds (11.8 kg) 31083
3-1/4-inch (83mm) 3-Key Standard Duty 26-Pounds (11.8 kg) 31084
3-1/4-inch (83mm) 2-Key Heavy Duty 26-Pounds (11.8 kg) 31084-HD
4-1/4-inch (108mm) 2-Key Standard Duty 28-Pounds (12.7 kg) 31085
4-1/4-inch (108mm) 3-Key Standard Duty 28-Pounds (12.7 kg) 31086
4-1/4-inch (108mm) 2-Key Heavy Duty 28-Pounds (12.7 kg) 31087
6-1/4-inch (159mm) 2-Key Heavy Duty 45-Pounds (20.4 kg) 31088
6-5/8-inch (168mm) 3-Key Standard Duty 45-Pounds (20.4 kg) 31089
8-1/4-inch (210mm) 3-Key Standard Duty 50-Pounds (22.7 kg) 31090
10-1/4-inch (260mm) 3-Key Heavy Duty 31092
10-1/4-inch (260mm) 2-Key Heavy Duty 31091
12-1/4-inch (311mm) 3-Key Heavy Duty 31093
12-1/4-inch (311mm) 2-Key Heavy Duty 31094
Auger Assembly Inside Diameter Assembly Length Assembly
Part Number
2-1/4-inch (57mm) 5-Foot (1.5m) HS0225-OCTAG-5
3-1/4-inch (83mm) 5-Foot (1.5m) HS0325-OCTAG-5
4-1/4-inch (108mm) 5-Foot (1.5m) HS0425-OCTAG-5
6-1/4-inch (159mm) 5-Foot (1.5m) HS0625-OCTAG-5
8-1/4-inch (210mm) 5-Foot (1.5m) HS0625-OCTAG-5
10-1/4-inch (260mm) 5-Foot (1.5m) HS1025-OCTAG-5
12-1/4-inch (311mm) 5-Foot (1.5m) HS1225-OCTAG-5
Component Part Assembly Part Number
Replacement Lockbolt 16010
Replacement Bushing 16014
Drive Cap Box Hex Shank Fits Pin Connection Number of Lockbolts Assembly Weight Assembly
Part Number
2-1/4-inch (57mm) 1-5/8-inch (41mm) Octagonal 2-Lockbolts 15-Pounds (6.8 kg) DC0225-OCT-1625
3-1/4-inch (83mm) 1-5/8-inch (41mm) Octagonal 2-Lockbolts 17-Pounds (7.7 kg) DC0325-OCT-1625
3-1/4-inch (83mm) 2-inch (51mm) Octagonal 2-Lockbolts 22-Pounds (10 kg) DC0325-OCT-2000
4-1/4-inch (108mm) 1-5/8-inch (41mm) Octagonal 2-Lockbolts 24-Pounds (10.9 kg) DC0425-OCT-1625
4-1/4-inch (108mm) 2-inch (51mm) Octagonal 2-Lockbolts 28-Pounds (12.7 kg) DC0425-OCT-2000
6-1/4-inch (159mm) 1-5/8-inch (41mm) Octagonal 2-Lockbolts 46-Pounds (20.9 kg) DC0625-OCT-1625
6-1/4-inch (159mm) 2-inch (51mm) Octagonal 2-Lockbolts 49-Pounds (22.2 kg) DC0625-OCT-2000
8-1/4-inch (210mm) 2-inch (51mm) Octagonal 2-Lockbolts 57-Pounds (25.9 kg) DC0825-OCT-2000
Drive Cap Box Top Connection Fits Pin Connection Number of Lockbolts Assembly Weight Assembly
Part Number
10-1/4-inch (260mm) 4-1/4-inch (108mm) Box Connection Octagonal 2-Lockbolts 70-Pounds (31.8 kg) DC1025-OCT-0425
12-1/4-inch (311mm) 4-1/4-inch (108mm) Box Connection Octagonal 2-Lockbolts 80-Pounds (36.3 kg DC1225-OCT-0425
Assembly Inside Diameter Cutting Face Components Pin Connection Assembly
Part Number
2-1/4-inch (57mm) 4-Bullet Bits Octagonal CH0225-OCTAG-BC20
3-1/4-inch (83mm) 4-Bullet Bits Octagonal CH0325-OCTAG-BC20
4-1/4-inch (108mm) 4-Bullet Bits Octagonal CH0425-OCTAG-BC20
6-1/4-inch (159mm) 6-Bullet Bits Octagonal CH0625-OCTAG-BC20
8-1/4-inch (210mm) 8-Bullet Bits Octagonal CH0825-OCTAG-BC20
10-1/4-inch (260mm) 12-Bullet Bits Octagonal CH1025-OCTAG-BC20
12-1/4-inch (311mm) 12-Bullet Bits Octagonal CH1225-OCTAG-BC20

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

[top]

Hollow Stem Auger (Flightless) Extensions – Manufactured by USExploration Equipment Company and designed to be used above grade, allowing the auger string to stop rotation at various depths, depending on rig stroke length, “jack-up” height, sampling frequency or well installation requirements.

The Flightless Extension typically is the same inside diameter (ID) as the tool string being advanced, however it can be fitted with a wide range of hollow stem auger Pin (male) and Box (female) connections, depending on rig spindle attachments.

This unique tool allows for a individualized “tool string” operating length, while maintaining clear access to the (cased) bore hole.

Specify rig spindle attachment, desired assembly length and tool string being advanced when ordering – special combinations available upon request.

3-1/4-inch (83mm) inside diameter Octagonal style Hollow Stem Auger Pin (right) & Box (left)

Octagonal Hollow Stem Augers & Accessories – are available from USExploration Equipment and represent a rugged alternative to consider when drilling in difficult overburden.

The relatively simple design, thick wall Axle (mid-body) and steep pitch on the flight, make these hollow stem augers an effective digging tool when the going gets a little rough.

Short auger sections with NPT threaded fittings give you the best tool for circulating cuttings from the Bit back to the surface.

Wash-Tees for Rotary & Diamond Drilling inside Hollow Stem Augers – are manufactured by USExploration Equipment Company and are designed to serve as a collar for the bore hole at the surface - while “rotary drilling” is underway and you are using hollow stem augers as surface casing.

The wash tee gives you the tool needed to circulate your returns from the open hole through your mud system.

When ordering, simply match your inside diameter to your appropriate pin connection and get the correct assembly headed to your job site.

Hollow Stem Auger (Spears/ Taps) Retrievers – are manufactured by USExploration Equipment Company and are normally used when a formation has caved in around the tool string, or a coupling has failed leaving good augers down-hole.

The appropriate fishing tool should first be selected by coupling inside dimension, number of keys and finally auger type – standard or heavy duty.

The inside or “Tap” type is ideal for recovering hollow stem augers, because the mid-bodies are much larger then solid stem augers, making a corkscrew type almost impossible to apply successfully – so it is much easier to get the hardened threads of the “Tap” inside the coupling and make a straight pull.

Auger Holders are available with single handle or double style (above)

Auger Holders (Forks or Pans) for Hollow Stem Augers – from USExploration Equipment Company are used to keep auger assemblies from heading back down the bore hole, once the auger extraction process begins.

This simple tool slides in between the “Pitch” of the flight, and tightly up against the outside of the Axle (mid-body) of the auger itself.

Since the Holder diameter is larger then the bore hole created by your augers, the fork serves as your only chance to keep tools from heading back down the hole, once you have tripped (TD) off bottom.

Our Auger Hoisting Assembly is the safest way to extract your augers from the hole.

Hoisting Tools & Accessories for Hollow Stem Augers – are manufactured by USExploration Equipment Company with 2-Key or 3-Key couplings.

The assembly is designed to fit over the exposed hollow stem auger pin at the surface and along with chains attached to a corresponding hollow stem auger box, provides a method for a straight, single line pull with your rig’s main hoist.

The Auger Hoisting Assembly is designed to use standard Lockbolts in the box assembly to pull the tool string vertically either when it is trapped by the formation or during the “back-filling” portion of a monitoring well installation.

3-1/4-inch (83mm) inside diameter Cutter Blade x Bullet Bit Cutterhead. The most efficient down-hole cutting tool in the industry – period!

The industry’s Premier Cutterhead for Hollow Stem Augers – is manufactured by USExploration Equipment Company to meet rigid compatibility specifications.

We start with our standard 2-Key or 3-Key cutterhead body designed to handle specially engineered Flight Segments, Cutter Blades, multiple sizes of Bullet Bits and Spade Bits assuring the ultimate cutting tool for your formation.

This fully-engineered cutterhead maximizes cutting performance, because it represents the hard lessons learned as a result of the accumulated trial and error from other designs over the many years of hollow stem auger exploration.

No other cutterhead digs in more diverse formations then this one…period!

Simply match your hollow stem auger coupling type and experience what true cutterhead engineering can do for your daily footage rates

From left to right - NWJ Rod-to-Cap Adapter,  4-1/4” (108mm) Center Plug with NWJ Box up & 1-1/8” (29mm) Hex Socket down, Plug Bolt & 3-1/2” (89mm) 2-Prong (Pilot) Mining Bit with Carbide Inserts

4-1/4” (108mm) ID x 3-Key Cutterhead with NWJ x 1-1/8” (29mm) Hex Center Plug & 3-1/2” (89mm) x 2-Prong (Pilot) Mining Bit with carbide inserts

We have taken a proven design & made it better – our thicker Flight extends your auger’s life down-hole.

Three-Key Heavy Duty Hollow Stem Augers & Accessories – are manufactured to be compatible with existing tools using the same Pin and Box configurations.

Our 3-Key Heavy Duty Hollow Stem Augers use a heat treated Pin with O-Ring for a watertight connection in the tool joint.

Each assembly includes 5/16-inch thick flight to protect the Box, Lockbolts and Axle assembly.

Our 3-Key Heavy Duty Drive Caps and Cutterheads are also compatible with your existing auger connections and use common components including Drive Keys, Lockbolts, Bushings, Flight Segments, Cutter Blades and Spades.

From left to right - NWJ Rod-to-Cap Adapter,  4-1/4” (108mm) Center Plug with NWJ Box up & 1-1/8” (29mm) Hex Socket down, Plug Bolt & 3-1/2” (89mm) 2-Prong (Pilot) Mining Bit with Carbide Inserts

4-1/4” (108mm) ID x 3-Key Cutterhead with NWJ x 1-1/8” (29mm) Hex Center Plug & 3-1/2” (89mm) x 2-Prong (Pilot) Mining Bit with carbide inserts

We have taken a proven design & made it better – our thicker Flight extends your auger’s life down-hole.

Three-Key Standard Duty Hollow Stem Augers & Accessories – are manufactured to be compatible with existing tools using the same Pin and Box configurations.

Our 3-Key Standard Duty Hollow Stem Augers use a heat treated Pin with O-Ring for a watertight connection in the tool joint.

Each assembly includes 5/16-inch thick flight to protect the Box, Lockbolts and Axle assembly.

Our 3-Key Standard Duty Drive Caps and Cutterheads are also compatible with your existing auger connections and use common components including Drive Keys, Lockbolts, Bushings, Flight Segments, Cutter Blades and Spades.

From left to right - NWJ Rod-to-Cap Adapter,  4-1/4” (108mm) Center Plug with NWJ Box up & 1-1/8” (29mm) Hex Socket down, Plug Bolt & 3-1/2” (89mm) 2-Prong (Pilot) Mining Bit with Carbide Inserts

4-1/4” (108mm) ID x 3-Key Cutterhead with NWJ x 1-1/8” (29mm) Hex Center Plug & 3-1/2” (89mm) x 2-Prong (Pilot) Mining Bit with carbide inserts

We have taken a proven design & made it better – our thicker Flight extends your auger’s life down-hole.

Two-Key Standard Duty Hollow Stem Augers & Accessories – are manufactured to be compatible with existing tools using the same Pin and Box configurations.

Our 2-Key Standard Duty Hollow Stem Augers use a heat treated Pin with O-Ring for a watertight connection in the tool joint.

Each assembly includes 5/16-inch thick flight to protect the Box, Lockbolts and Axle assembly.

Our 2-Key Standard Duty Drive Caps and Cutterheads are also compatible with your existing auger connections and use common components including Drive Keys, Lockbolts, Bushings, Flight Segments, Cutter Blades, 5-T Bits and Spades.

From left to right - NWJ Rod-to-Cap Adapter,  4-1/4” (108mm) Center Plug with NWJ Box up & 1-1/8” (29mm) Hex Socket down, Plug Bolt & 3-1/2” (89mm) 2-Prong (Pilot) Mining Bit with Carbide Inserts

4-1/4” (108mm) ID x 3-Key Cutterhead with NWJ x 1-1/8” (29mm) Hex Center Plug & 3-1/2” (89mm) x 2-Prong (Pilot) Mining Bit with carbide inserts

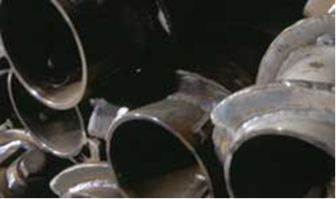

The industry’s best auger features a tapered Pin, a tapered Box, longer deep-set Key Ways, larger Lockbolts, wider and thicker Flight.

Two-Key Heavy Duty Hollow Stem Augers & Accessories – Our “premier line” are manufactured to be compatible with existing tools using the same Pin and Box configuration.

Our 2-Key Heavy Duty Hollow Stem Augers use a heat treated and tapered Pin and Box for extended life and easy make-break in the field.

Our 1-3/4-inch wide x 5/16-inch thick flight, protects the Box, Lockbolt Heads and Axle assembly better than standard duty flight.

Cutterheads, Drive Caps, Lockbolts and Drive Keys are compatible with your existing tool strings.

Simply match your inside diameter requirements to your needs and put the industry’s best 2-Key Auger to work for you!

3510 East Raymond Street, Indianapolis, IN 46203 USA       Worldwide Phone: 1-(317) 780-0117       Worldwide Fax: 1-(317) 780-9126

Copyright ©2016 USEECO - USExploration Equipment Company -  All rights reserved
