Assembly Style Material Type Access Door Style Surface Treatment Assembly Length Assembly Part Number
4” x 4” (102mm) Square Steel Hinged Primed 5-Foot (1.5m) LWPS4
4” x 4” (102mm) Square Aluminum Hinged None Required 5-Foot (1.5m) LWPA4
4” (102mm) Round Aluminum Swivel None Required 5-Foot (1.5m) LWPR-A4
6” x 6” (152mm) Square Steel Hinged Primed 5-Foot (1.5m) LWPS6
6” x 6” (152mm) Square Aluminum Hinged None Required 5-Foot (1.5m) LWPA6
6” (152mm) Round Aluminum Swivel None Required 5-Foot (1.5m) LWPR-A6
8” x 8” (203mm) Square Steel Hinged Primed 5-Foot (1.5m) LWPS8
10” (254mm) Round Steel Slip Type Primed 5-Foot (1.5m) LWPR-S10

4” (102mm) Round Aluminum Locking Well Protector with a Swivel Style Lid, eliminates the need for primer, paint or hinge replacement & NEVER RUSTS!

Locking Well Protectors

Available from USExploration Equipment Company in a number of different material types and configurations.

The Locking Well Protector is installed over a water/monitoring well which finishes above grade.

The well protector is typically 5-feet (1.5 m) in length to allow for secure anchoring into the surface surrounding the well.

Each assembly includes a hinged or swivel style access door.

Custom lengths are also available upon request.

24” x 24” x 24” (610mm) Locking Steel Vault (Lid open and Lid closed) with H-20 Rating Custom dimensions, Lid designs, Hinge styles and Skirt lengths available upon request.

Locking Well Vaults

Available from USExploration Equipment Company and are designed to allow access to “clusters” of monitoring or observation wells.

The Vault contains a recessed locking device and a cover which are designed to keep out water, dirt and debris.

Each Vault features a steel frame, diamond plate cover, steel skirt and carries the H-20 load steel rating.

Specify your required dimensions, preferred hinge type & skirt length when ordering.

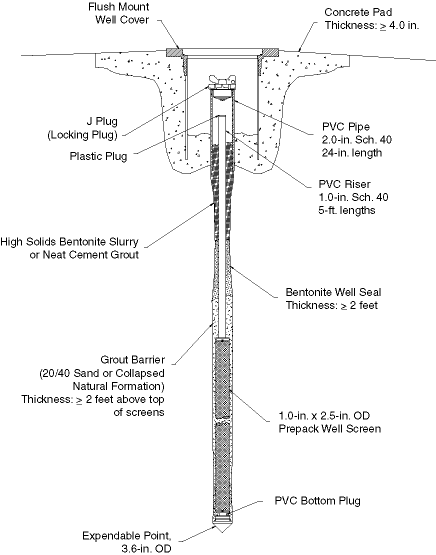

Installation Diagram

Both the male & female ends are clamped, and use a PVC Sleeve.

Typical 2-inch (51mm) environmental monitoring well installation using a Pre-Pak screen – very similar to an installation using conventional screen and riser (casing)

Each Pre-Pak Screen, male end is equipped with an O-Ring Seal

Pre-Pak Well Screen Size Outside Diameter Flush Threads Assembly Length Inside Diameter Assembly Part
Number
0.750-inches (19mm) 1.40-inches (35.6mm) 8-TPI (ASTM) 5-Foot (1.5m) 0.81-inches (20.6mm) PPS40X105X60
1.000-inches (25.4mm) 1.70-inches (43.2mm) 8-TPI (ASTM) 5-Foot (1.5m) 1.033-inches (26.24mm) PPS170X131X60
1.500-inches (38.1mm) 2.40-inches (60.96mm) 8-TPI (ASTM) 5-Foot (1.5m) 1.592-inches (40.44mm) PPS240X190X60
2.000-inches (51mm) 2.80-inches (71.12mm) 2-TPI (ASTM) 5-Foot (1.5m) 2.049-inches (52.04mm) PPS280X2375X60

Pre-Pak Well Screens

Manufactured by Monoflex & available from USExploration Equipment Company for use inside (DPT) direct push casing, installed in open bore holes or used as liners in larger diameter well applications.

These screens are all Schedule-40 PVC x .010” (referred to as “10”) slot with ASTM (F-480) Flush Joint threads & O-Ring Seals, for assembly of longer screen lengths (than the standard 5-foot) or to couple directly to threaded casing (riser).

The Filter Pack of clean, fine grade silica sand is secured to the PVC screen with an overlay of #45 stainless steel mesh that holds the sand securely & uniformly in place.

These Pre-Paks are unique because they have a PVC Sleeve under the clamp at each end which helps keep the PVC centered and the sand more uniform throughout the filter pack for more even flow through the slotted screen assuring optimal results.  This also alleviates gaps between the sand & the screen.

Match your desired well size and assembly length when ordering

Assembly Dimensions Lid Material Lid to Grade Lid Features Skirt Material Load Rating Assembly Part Number
12-inch (305mm) Long
12-inch (305mm) Wide
12-inch (305mm) Deep
Diamond Plate Flush Hinged x Water Tight x Locking Steel H-20 LSV-104121212WT
18-inch (457.2mm) Long
18-inch (457.2mm) Wide
18-inch (457.2mm) Deep
Diamond Plate Flush Non-Hinged x Locking Steel H-20 LSV-360181818
24-inch (610mm) Long
24-inch (610mm) Wide
24-inch (610mm) Deep
Diamond Plate Flush Hinged x Water Tight x Locking Steel H-20 LSV-360242424
24-inch (610mm) Long
24-inch (610mm) Wide
48-inch (1.2m) Deep
Diamond Plate Flush Hinged x Water Tight x Locking with Lift Assist Steel H-20 LSV-104242448WT
36-inch (914.4mm) Long
36-inch (914.4mm) Wide
24-inch (610mm) Deep
Diamond Plate Flush Hinged x Water Tight x Locking Steel H-20 LSV-104363624
36-inch (914.4mm) Long
36-inch (914.4mm) Wide
36-inch (914.4mm) Deep
Diamond Plate Flush Hinged x Water Tight x Locking with Lift Assist Steel H-20 LSV-104363636
48-inch (1.2m) Long
30-inch (762mm) Wide
24-inch (610mm) Deep
Diamond Plate Flush Hinged x Water Tight x Locking with Spring Loaded Lift Assist Steel H-20 LSV-104304824WT
48-inch (1.2m)
Long
36-inch (914.4mm) Wide
24-inch (610mm) Deep
Diamond Plate Flush Hinged x Water Tight x Locking with Spring Loaded Lift Assist Steel H-20 LSV-104364824WT
48-inch (1.2m)
Long
48-inch (1.2m)
Wide
24-inch 610mm)
Deep
Diamond Plate Flush Hinged x Water Tight x Locking with Cylinder Style Lift Assist Steel H-20 LSV-104484824
