Our Products: Geotech Tooling

Hoisting and Driving Tools

Description Clamps to Casing Sizes Shipping Weight Assembly
Part Number
Pump-Pull Assist Assembly with Housing, Rollers & Clamping Bolt 5.625-inches (142.8mm) to 8.0-inches (203 mm) 11-Pounds (5 kg) 27-WP-PPA
140-Pound (63.5 kg) Safety Style Hammer Assembly Pin Down Connection Assembly Weight Assembly
Part Number
AW 190-Pounds (86.2 kg) 26001
AWJ 190-Pounds (86.2 kg) 26002
Outer Sleeve 127-Pounds (57.6 kg) 26022
Hammer Center Rod - AW 28-Pounds (12.7 kg) 26025
Hammer Center Rod – AWJ 28-Pounds (12.7 kg) 26026
Threaded Cap 14-Pounds (6.4 kg) 26029
300-Pound (136 kg) Safety Style Hammer Assembly Pin Down Connection Assembly Weight Assembly Part Number
NW 351-Pounds 26022
NWJ 351-Pounds 26003
Outer Sleeve 295-Pounds (133.8 kg) 26024
Hammer Center Rod - NW 39-Pounds (17.7 kg) 26027
Hammer Center Rod - NWJ 39-Pounds (17.7 kg) 26028
Threaded Cap 17-Pounds (7.7 kg) 26030
140-Pound (63.5 kg) In-Hole Style Hammer Assembly Box Down Connection Assembly Weight Assembly
Part Number
AW 180-Pounds (63.5 kg) 26215
Swivel Assembly 5-Pounds (2.3 kg) 26216
Bolt & Nut Set Fits Swivel Assembly 1-Pound (.45 kg) 26217
Impact Block 168-Pounds (76.2 kg) 26218
Drill Rig Make & Model Assembly
Part Number
USExploration Equipment Company Model S-27CS 25052
USExploration Equipment Company Model S-27CRS 25051
USExploration Equipment Company Model S-27CS-T 25052
USExploration Equipment Company Model S-27CRS-T 25051
Mobile Drill Model B-53 25053
Mobile Drill Model B-57 25054
Mobile Drill Model B-58 25054
Mobile Drill Model B-59 25055
Mobile Drill Model B-61HD 25056
Mobile Drill Model B-61HDX 25056
Safe-T-Driver ® Hoist Capacity Maximum Hoisting Speed Up 1,132 rpm Maximum Cable Spooling Capacity Minimum Hydraulic Operating Requirements Assembly
Part Number
1,140-pound (517.1 kg) 350-feet (107m) 25 gpm @ 2,500 psi 7100-21012-25
Safe-T-Driver ® Assembly Components Assembly
Part Number
Hoist Drum & Mounting Parts 7100-71026-08
Cable & Clevis for Mechanical Brake 35-feet (10.7m) 7100-050366-35
Cable & Clevis for Mechanical Brake 44-feet (13.4m) 7100-050366-44
Over-Running Clutch Assembly 7100-140592-01
Hydraulic Motor Assembly 7100-71012-31
Hoist Shaft Assembly 7100-213055
Mechanical Brake Handle Assembly 7100-216724

[top]

[top]

[top]

[top]

Safe-T-Driver ® Hoist with ¼-inch (6.4mm) Cable

Safe-T-Driver ® Hoists - are available from USExploration Equipment Company as an alternative to a cathead for SPT sampling operations.

The simple design allows the operator to raise and lower a safety hammer assembly 30-inches (762mm) - attached directly to the ¼-inch (6.4mm) cable that is spooled on the drum itself.

The handle at the panel allows the operator to control the lift (visually), then pull the same lever down, pushing enough oil through the system to an over-running clutch attached to the hoist drum, creating a free-fall “action” for the 140-pound (63.5 kg) weight as part of the requirements for ASTM-D-1586-99  in every state.

This same hoist can be used to “bump-out” when required, unlike other automatic or semi-automatic driving devices.

The field kit includes a hand brake when conditions require it – simply specify the rig make and model when ordering.

140-Pound (63,5kg) SPT Automatic Hammer Assembly

SPT Automatic Hammer Assemblies - are available from USExploration Equipment Company.

They give you extremely consistent and accurate Standard Penetration Test (SPT) results, meeting all ASTM-D-1586-99 requirements in every state.

These assemblies can be adapted to virtually any 5-foot stroke machine because the hammer simply swings in from a “stored” position to the “on-hole” position.

Since raising and lowering is done hydraulically, set up is quick and almost effortless.

For maximum safety, all moving parts are enclosed, including the impact area between the weight and the anvil.

Each assembly includes a Hammer Case, Slug, Hydraulic Cylinder, Hydraulic Motor, Guide and Sub.

When ordering, specify the make and model for the rig installation and hydraulic circuitry you intend to use.

AWJ Full-Swivel Hoisting Plug (top) and AW/ AWJ Rod “Slip” Ring (bottom)

Hoisting & Rod Handling Tools for J-Series, W-Design & API style Drill Rods – are available from USExploration Equipment Company.

Full-Swivel style Hoisting Plugs and Rod (Slip) Rings are all DCDMA compatible.

When ordering, simply choose the appropriate thread style and corresponding tool for your application.

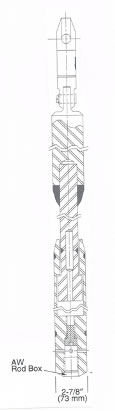

140-Pound (63.5 kg) In-Hole Hammer Assembly with Swivel and AW Box Down



140-Pound (63.5 kg) Safety Style Hammer Assembly with Cast Anvil  and AWJ Pin Down



Safety Type & In-Hole Style “SPT” Drive Hammers, Parts & Accessories – are available from USExploration Equipment Company.

Typically attached to the “business end” of a Cathead Rope or a Safe-T-Driver Hoist (free-spooling) cable, these tools are designed to help the operator complete ASTM Procedure D1586-08a along with the appropriate down-hole sampling device.

This test includes lifting and (freely) dropping a 140-Pound (63.5 kg) weight exactly 30-inches (762mm) on top of 1-3/4-inch (44.5 mm) Outside diameter (AW or AWJ) Drill Rods to achieve the correct “N” value as it relates to determining material density and proper foundation design.

The 300-Pound (136 kg) version is typically used to drive Flush Joint Casing through formations that are too difficult to advance Solid Stem or Hollow Stem Augers.

The In-Hole Style Hammer works best in conjunction with a Safe-T-Driver Hoist as the 2-7/8” (73mm) OD assembly can be lowered into Flush Joint Casing or Hollow Stem Augers, to advance a Sampler, break up material that has worked its way inside the annular space or simply act as an internal cutting face in addition to the Casing Shoe or Cutter head.

When ordering, make sure you specify Safety Style or In-Hole Hammer assembly



The simple clamping function allows you to adjust quickly to different casing diameters.

The precision machined (roller) axles assure a smooth straight pull without vibration - every time.

The Pump Pull-Assist clamps quickly & easily to a wide range of steel casing.

Tapered hard plastic rollers assure that the PVC, wires and pump come out of the casing easily.



Pump-Pull Assist – The Pump-Pull Assist is the simplest & most cost effective way to pull well pumps out of the ground easily and without any heavy equipment.

The assembly easily clamps to virtually any commercially used (steel) well casing allowing your team to pull the flexible pump piping over the durable built-in tapered rollers.

Its design & powder coated steel construction provide a durable, lightweight, portable solution to pulling well pumps

Hoisting Plug, Full-Swivel Style
with Heavy Duty Bail
Special Feature Assembly Part Number
A Rod Pin Down 25014
N-4 Pin Down 25015
AW Pin Down W-Design Drill Rods 25004
AWJ Pin Down J-Series Drill Rods 25005
NW Pin Down W-Design Drill Rods 25006
NWJ Pin Down J-Series Drill Rods 25007
2-3/8” API IF Pin Down Drill Pipe 25043
2-3/8” Mayhew Regular Pin Down Drill Pipe 25040
2-3/8” API Regular Pin Down Drill Pipe 25046
2-7/8” API IF Pin Down Drill Pipe 25037
2-7/8” API Regular Pin Down Drill Pipe 25047
3-1/2” API IF Pin Down Drill Pipe 25049
3-1/2” API Regular Pin Down Drill Pipe 25048
HQ Wireline Pin Down Thinwall Wireline Drill Rods 25044
NQ Wireline Pin Thinwall Wireline Drill Rods 25045
3” Double-Start Sonic Rod Pin Down Sonic Drill Rods 300-500-113
5-1/2” Double-Start Sonic Casing Pin Down Sonic Casing 300-500-117
7” Double-Start Sonic Casing Pin Down Sonic Casing 300-500-123
CR-50 Pin Down Atlas Copco – Craelius Drill Rods 25041
NQ Wireline Pin Thinwall Wireline Drill Rods 25064-BL
PWT (RH) Casing Pin Flush Joint Casing 25065
NW (RH) Casing Pin Flush Joint Casing 25069
HWT (RH) Casing Pin Flush Joint Casing 25070
NW Box W-Design Drill Rod 25072
HQ Wireline Pin Thinwall Wireline Drill Rods 25073
Rod (Slip) Ring with Heavy Duty Bail Special Feature Assembly Part Number
A Drill Rods Closed 25010
AW & AWJ Drill Rods Closed 25008
AW & AWJ Drill Rods Open 25050
N Drill Rods Closed 25013
NW & NWJ Drill Rods Closed 25011
BW/ BWJ Open 25057
BW/ BWJ Closed 25058
EW Open 25063
N Open 25071
AW/ AWJ Round x Oversized x Closed 25076
NW/ NWJ Open 25077
